RUBBER EXPANDER(BANANA)
ROLLER

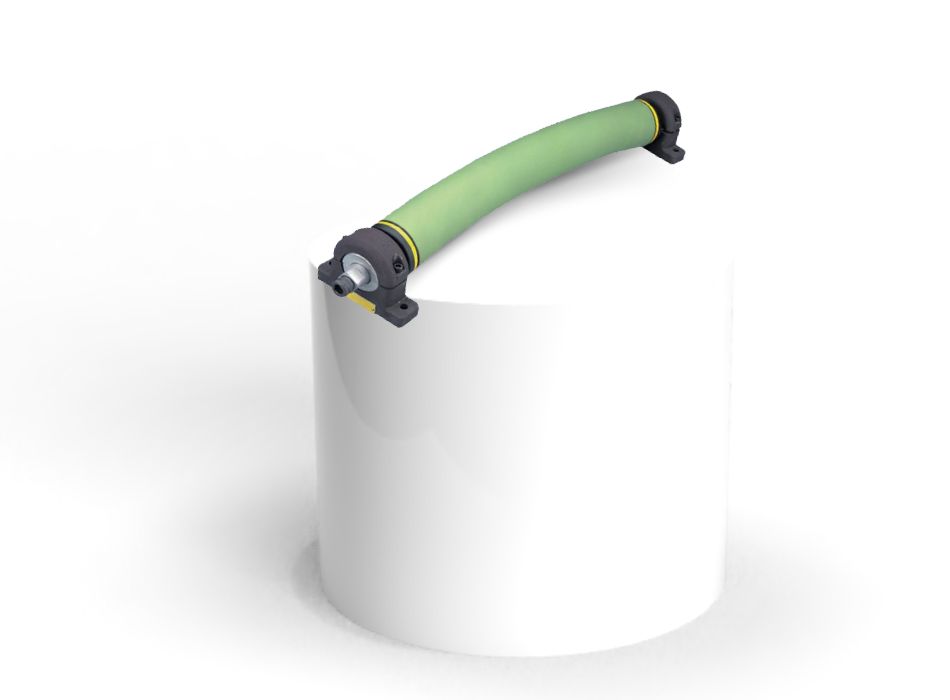

Rubber Expanded(Banana) Roller
Accurate Rub Tech is a leading and top most bow banana rollers manufacturer Company in India. It offers the best international standards bow rollers for the textile industry to remove the crease/wrinkles. The wrinkle removing rollers also known as banana rollers which are mainly used in the textile industry to remove the wrinkles from the fabric at different stage. The bow rollers or rubber expander rollers offered by Accurate Rub Tech are not only used to remove wrinkles but also for achieving a full stretch of the web and remove the bagginess in the central area, and to control the slackness at the edges.
Applications
Corona Treatment Machine
Extrusion Coating Machine
Thermal Lamination Machine
Heat & Press Lamination Machine
Cutting Sealing Machine
Holography Machine
Foil Processing Machine
Other Coating Lamination Machine
Diameter up to 750mm, Length up to 6000mm including journals, Hardness form 45 Shore A to 100 Shore A and 70 Shore D. Run out (eccentricity) of rubber surface 0.02-0.05 mm depending on hardness and type of rubber.
Rubber Processing (Bale cutting, Aoutomatic Batch Weighing System, Dispersion Kneader Mixing mill) Roll Covering (Automatic Strip Binding), Valcanising, Grindign etc.
Surface Plate of 2 m x 1 m for testing (eccentricity, parallelism), Dimensional accuracy Vernier (3mtr., 1mtr., 300mm) Micrometer (0-25mm, 25-50mm, 50-100mm, 100-400mm with 0.001 resolution), Dial Guages, Hardness tester etc. Testing of compounds for rheological properties, compression set and abrasion are done at reputed laboratories.
